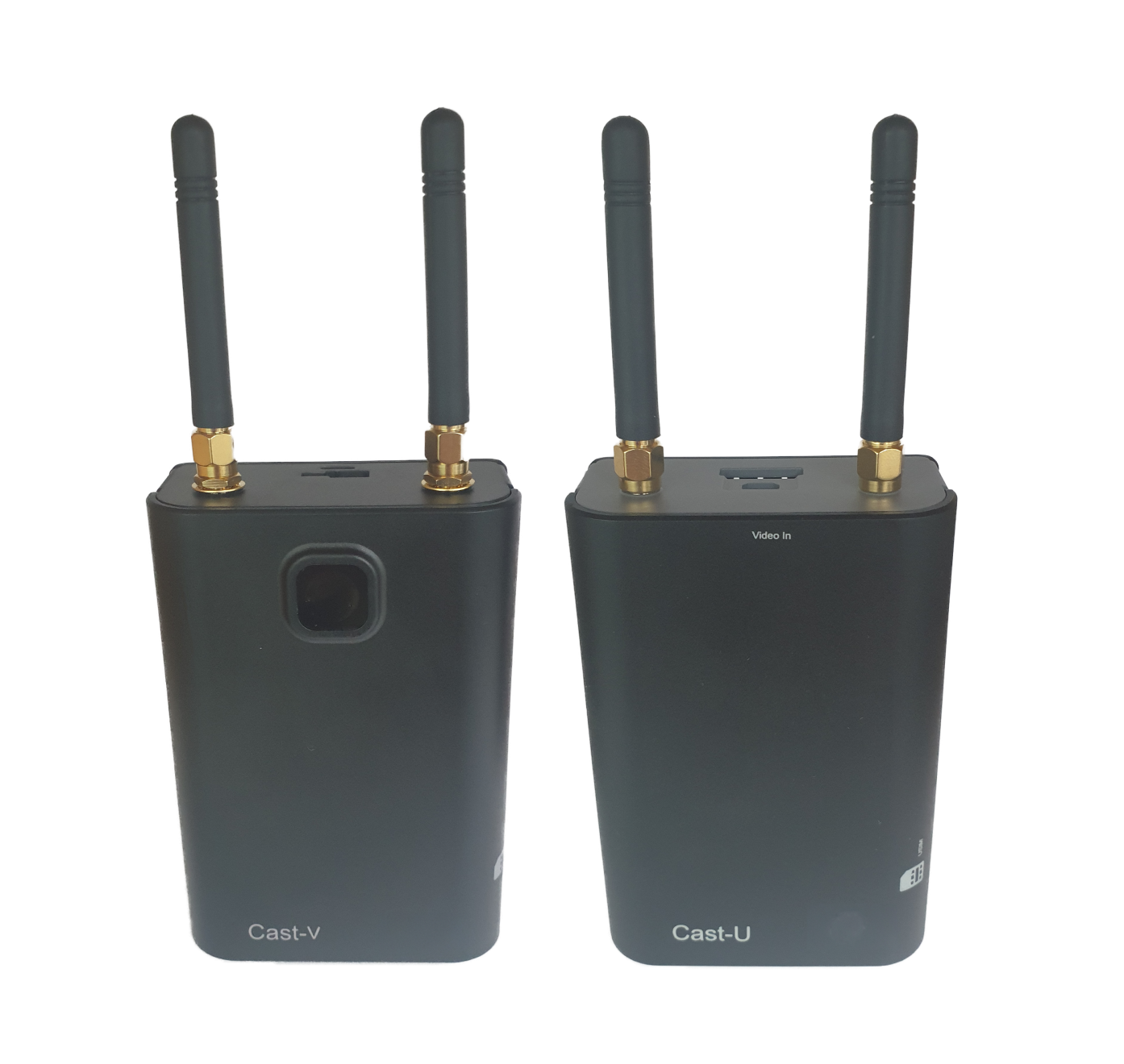

    Ultra-low latency LTE video transmission module (Cast-U/V)

    Cast-U/V transmits mobility camera footage from robots, drones, heavy machinery, etc., with ultra-low latency over both wired and wireless networks, enhancing productivity, efficiency, and industrial safety for remote operations. Equipped with 5G/LTE modules, it enables ultra-low latency video transmission over the same wireless network.

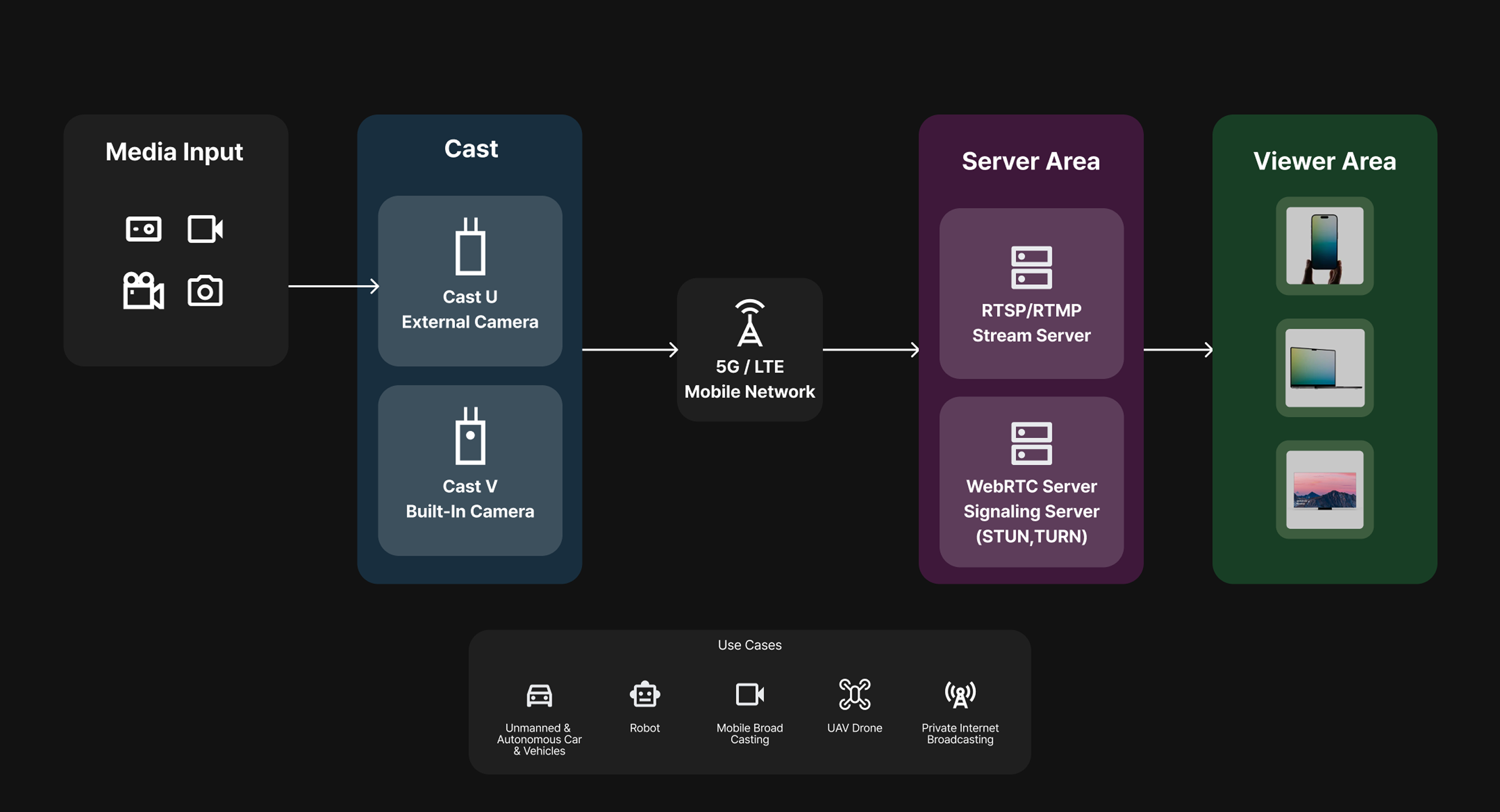

    Architecture

    Onnetsystems Technology

    • CBR/VBR, ABS network state adaptive technology

      • WAN: LTE module (Cat.4)

        • LTE modem integrated (800MHz/2.1GHz, Band 5/1)

          • LAN: 1000Base-T * 1 ports

            • FHD@30fps

              • PCM audio

                • MonaLisa® II ASIC applied

                  • Transmission delay: Approximately 150ms

                    • Standard RTSP server integration, WebRTC integration

                      • P2P connection technology support

                        Technical Specifications

                        Category
                        • U Caster II
                        • Caster-U
                        • Caster-V
                        Appplication Processor
                        • QCS405 -Qualcomm LPDDR3 4Gb + eMMC 4GB
                        • CPU: Quad core A53 , 64 bit processor, (1.4 GHz)
                        • GPU: Qualcomm® Adreno™ 306
                        • Memory: eMCP,8GB eMMC5.1+8Gb LPDDR3
                        • Audio: MP3, AAC, ALAC, FLAC, He AAC v1/v2, WMA 9/Pro
                        • CPU: Quad core A53 , 64 bit processor, (1.4 GHz)
                        • GPU: Qualcomm® Adreno™ 306
                        • Memory: eMCP,8GB eMMC5.1+8Gb LPDDR3
                        • Audio: MP3, AAC, ALAC, FLAC, He AAC v1/v2, WMA 9/Pro
                        Input
                        • 4xCh (4ch FHD)/HDMI for U-Caster-II
                        • Video : 1 Ch / FHD support ( FHD , 30fps )
                        • Audio : internal MIC / opus Encoding
                        • Video : Built in Camera ( FHD , 30fps )
                        • Audio : internal MIC / opus encoding
                        Ethernet
                        • 10/100Base-T * 1-port for LAN
                        • 1 Port
                        • 10/100 Base - T
                        • 10/100 Mbps
                        • Auto MDI,MDIX
                        • 1 Port or 2 Port
                        • 10/100/1000 Base - T
                        • 10/100/1000 Mbps
                        • Auto MDI,MDIX
                        Wireless
                        • None
                        • IEEE 802.11a/b/g/n/ac 2T2R Bluetooth 5.0
                        • IEEE 802.11 a/b/g/n/ac 2T2R
                        Mobile
                        • None
                        • LTE FDD 850MHz(B5), 2.6GHz (B7) Module FOTA
                        • LTE FDD 850MHz(B5), 2.6GHz (B7) Module FOTA
                        Power
                        • 12V/2A, 7~9 Watt
                        • Adaptor 5V/2A built-in battery 4,000mAh (3.7V) - Select Use
                        • Adaptor 5V/2A built-in battery 4,000mAh (3.7V) - Select Use
                        Memory
                        • SD Card slot (Option)
                        • SD Card slot
                        • SD Card slot
