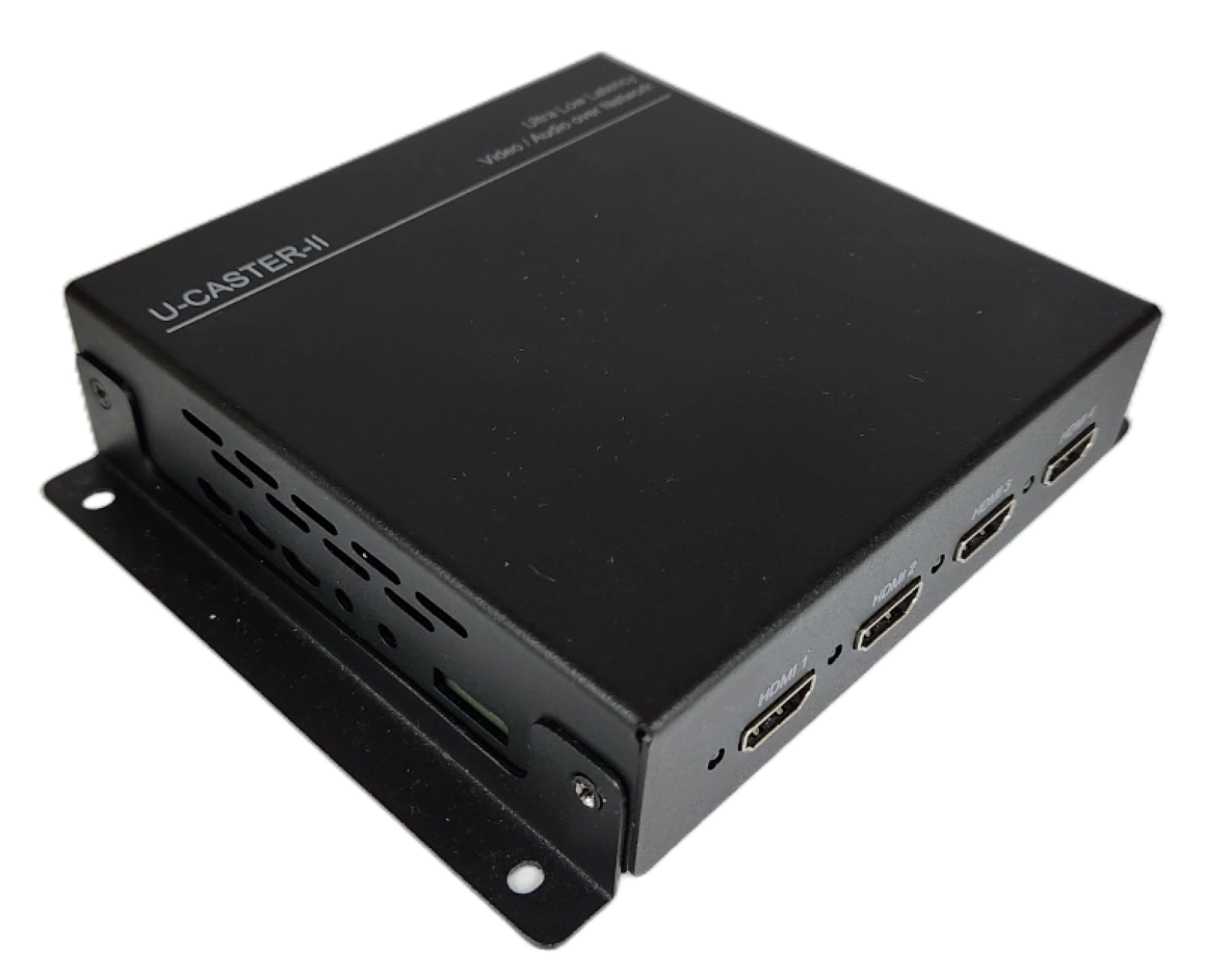

    Ultra-low latency video transmission module (U-Caster-II)

    U-Caster-II is a video transmission module and platform that enhances productivity, efficiency, and industrial safety for remote operations by transmitting mobility camera footage from robots, drones, and heavy machinery over wired and wireless networks with ultra-low latency. By utilizing 5G/LTE routers, video transmission is possible even over wireless networks. It incorporates the MonaLisa® SoC, a custom-developed semiconductor, to achieve ultra-low latency video transmission.

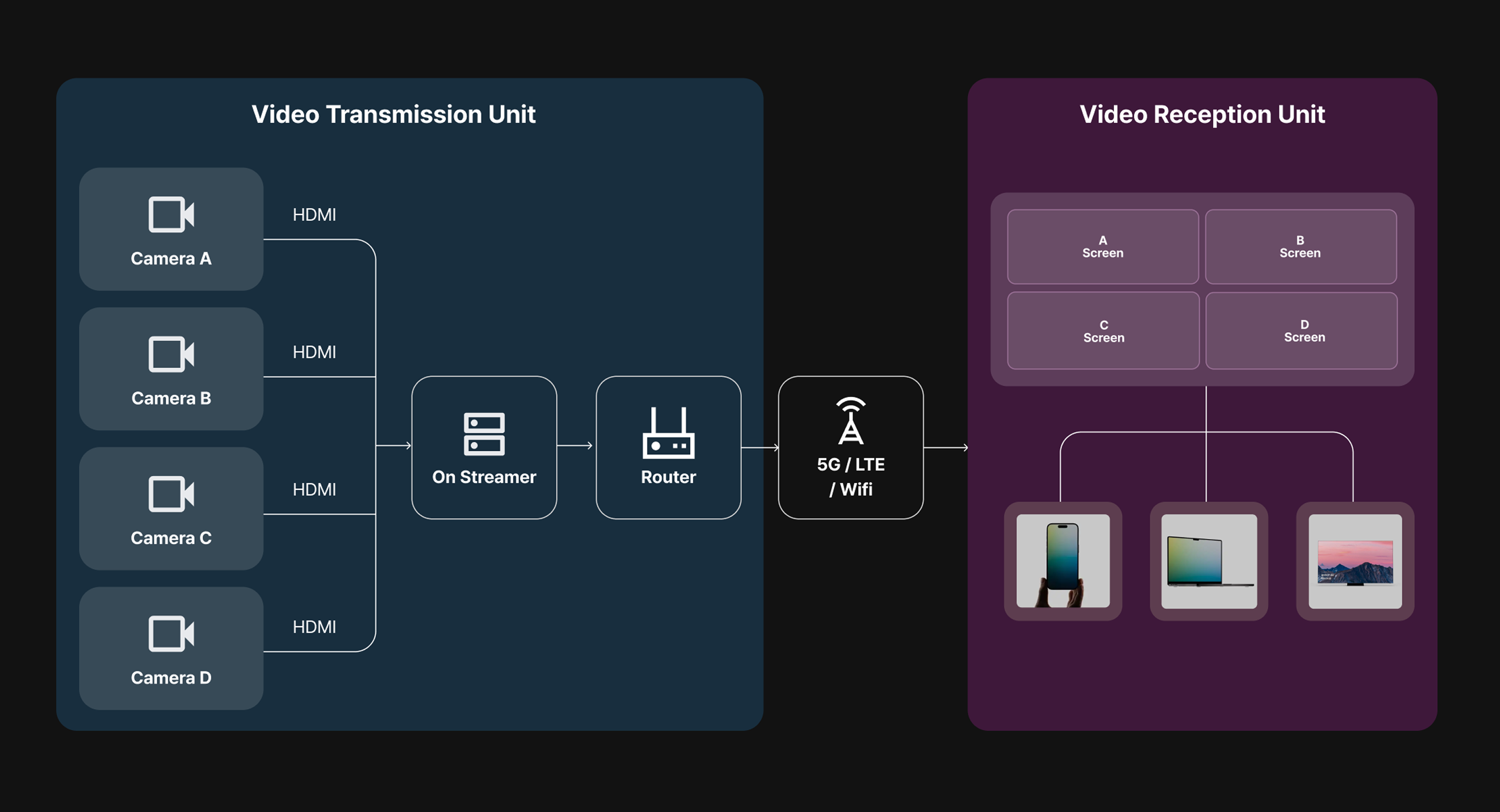

    Architecture

    Onnetsystems Technology

    • On-Screen Display

      • Video HDMI 4ch composite transmission

        • Ultra-low latency: ~200ms

          • Video display mode selection

            • H.264 compression (1920*1080)

              • Supports network streaming with LTE/7G mobile network integration

                • Supports network streaming with LTE/7G mobile network integration

                  • WebRTC: Integrated server subscription/buildRTSP server: Local NVR integration

                    • Security support (AES128/AES256)

                      Technical Specifications

                      Category
                      • U Caster II
                      • Caster-U
                      • Caster-V
                      Appplication Processor
                      • QCS405 -Qualcomm LPDDR3 4Gb + eMMC 4GB
                      • CPU: Quad core A53 , 64 bit processor, (1.4 GHz)
                      • GPU: Qualcomm® Adreno™ 306
                      • Memory: eMCP,8GB eMMC5.1+8Gb LPDDR3
                      • Audio: MP3, AAC, ALAC, FLAC, He AAC v1/v2, WMA 9/Pro
                      • CPU: Quad core A53 , 64 bit processor, (1.4 GHz)
                      • GPU: Qualcomm® Adreno™ 306
                      • Memory: eMCP,8GB eMMC5.1+8Gb LPDDR3
                      • Audio: MP3, AAC, ALAC, FLAC, He AAC v1/v2, WMA 9/Pro
                      Input
                      • 4xCh (4ch FHD)/HDMI for U-Caster-II
                      • Video : 1 Ch / FHD support ( FHD , 30fps )
                      • Audio : internal MIC / opus Encoding
                      • Video : Built in Camera ( FHD , 30fps )
                      • Audio : internal MIC / opus encoding
                      Ethernet
                      • 10/100Base-T * 1-port for LAN
                      • 1 Port
                      • 10/100 Base - T
                      • 10/100 Mbps
                      • Auto MDI,MDIX
                      • 1 Port or 2 Port
                      • 10/100/1000 Base - T
                      • 10/100/1000 Mbps
                      • Auto MDI,MDIX
                      Wireless
                      • None
                      • IEEE 802.11a/b/g/n/ac 2T2R Bluetooth 5.0
                      • IEEE 802.11 a/b/g/n/ac 2T2R
                      Mobile
                      • None
                      • LTE FDD 850MHz(B5), 2.6GHz (B7) Module FOTA
                      • LTE FDD 850MHz(B5), 2.6GHz (B7) Module FOTA
                      Power
                      • 12V/2A, 7~9 Watt
                      • Adaptor 5V/2A built-in battery 4,000mAh (3.7V) - Select Use
                      • Adaptor 5V/2A built-in battery 4,000mAh (3.7V) - Select Use
                      Memory
                      • SD Card slot (Option)
                      • SD Card slot
                      • SD Card slot
